Seamless Copper Tubes for HVAC (ASTM B280) & Plumbing (BS EN 1057). Ready Stock for Major Projects.

Copper Pipe Supplier Malaysia | Thermoline®

As the premier Copper Pipe Supplier Malaysia trusts, Allied Foam delivers high-performance Thermoline® tubes for HVAC and plumbing. We are the only Copper Pipe Supplier Malaysia offering a full range of ASTM B280 pancake coils and BS EN 1057 straight pipes ready for immediate delivery. Choosing the right Copper Pipe Supplier Malaysia ensures your project meets all SIRIM and ISO safety standards

Sanitary & Water Copper Tubes

BS EN 1057 certified tubes (Table X & Y) for durable hot/cold water and gas distribution.

View Our Products

Hard Drawn Straight Pipes

Engineered for high-pressure VRV & VRF systems. Fully compliant with ASTM B280 and AS 1571.

View Our Products

Seamless Pancake Coils (ACR)

Soft annealed (O) temper, dehydrated, and capped. The perfect choice for split-unit installation.

View Our Products

Copper Insulated Pair Coil

Factory-insulated with high-density PE/PU foam. Faster installation with superior condensation control.

View Our Products

TECHNICAL SPECS

Manufacturing Standards & Export Lengths

Universal specifications applicable to all Thermoline® Copper Products.

1. Manufacturing Codes & Alloys

Standard Code	Alloy No.	Chemical Composition
ASTM B280	UNS C12200	Cu ≥ 99.9% \| P 0.015-0.040%
AS 1571 / JIS H 3300	C12200	Cu ≥ 99.9% \| P 0.015-0.040%
BS EN 1057	Cu-DHP (CW024A)	Cu+Ag ≥ 99.9% \| P 0.015-0.040%

* Phosphorous Deoxidized Copper (DHP) ensures corrosion resistance.

2. Standard Stock Lengths

Product Form	Temper Grade	Standard Length
Straight Pipe	Half Hard (HH)	5.8 Meter
Straight Pipe	Hard Drawn (H)	5.8 Meter
Pancake Coil	Soft Annealed (O)	15.0 Meter

* Custom lengths available upon request for bulk orders.

Products

ACR Grade Annealed

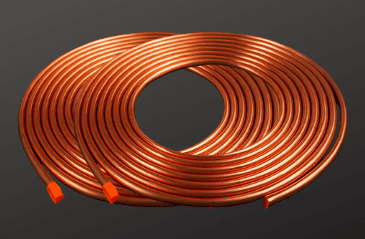

Seamless Pancake Coils

Produced to ASTM B280 standards. Meticulously cleaned, dehydrated, and capped to protect compressors from contamination.

Flexible: Soft Annealed (O) temper.
Length: 15 Meter continuous coils.
Protection: Shrink-wrapped in carton box.

📄 View Full Catalogue

Engineering Data

Ref: ASTM B280 / JIS H 3300

Size (OD)	Wall Thickness	Safe Working Pressure (50°C)
1/4" (6.35mm)	21 - 23 SWG	1125 - 1542 PSI
3/8" (9.53mm)	21 - 23 SWG	727 - 985 PSI
1/2" (12.70mm)	20 - 22 SWG	630 - 820 PSI
5/8" (15.88mm)	19 - 21 SWG	499 - 730 PSI
3/4" (19.05mm)	18 - 20 SWG	534 - 727 PSI

Note: Safe working pressure data derived from Catalog Page 5. Ratings vary by specific wall thickness.

VRV System Hard Drawn

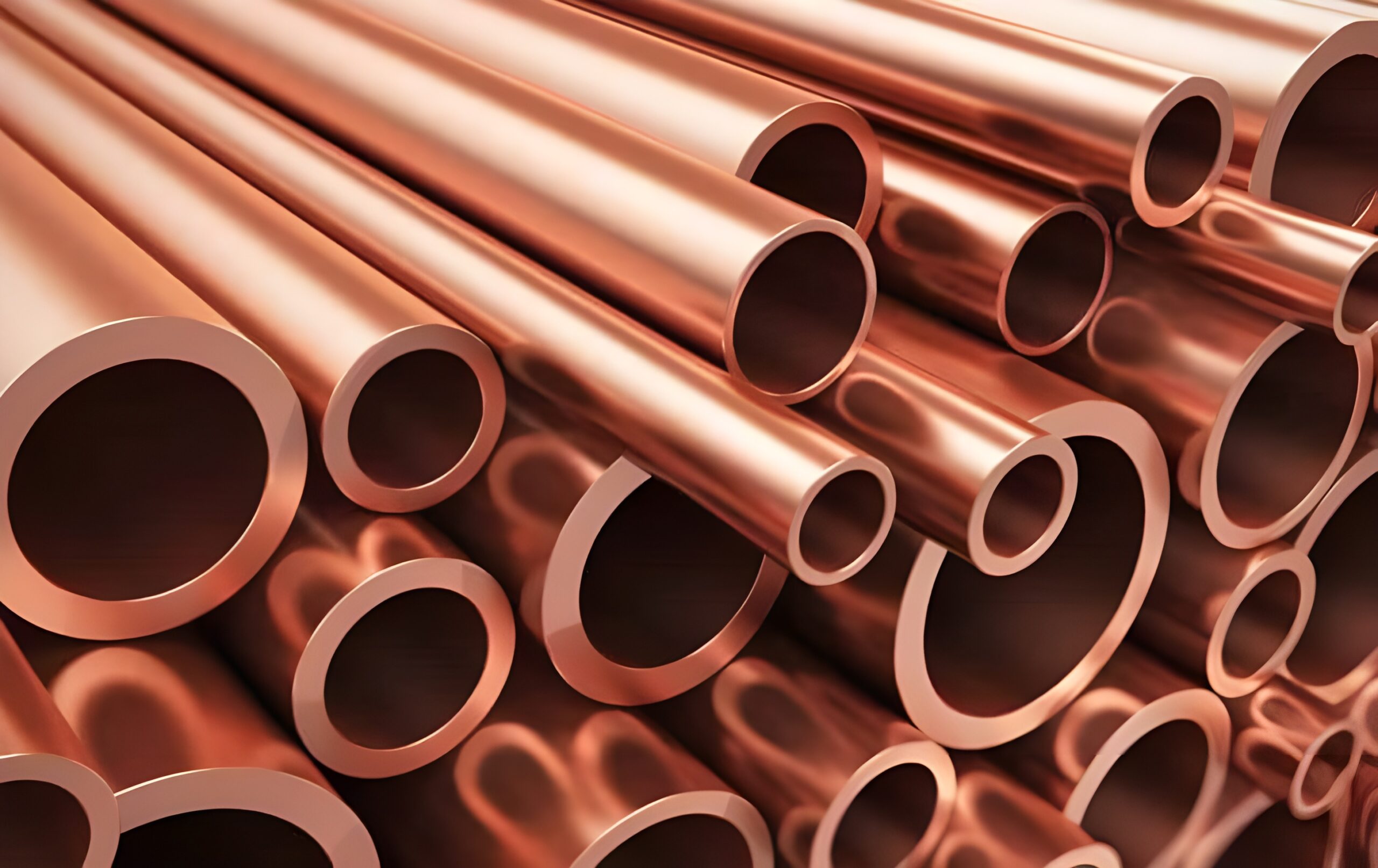

Hard Drawn Straight Pipes

Engineered for structural rigidity and high-pressure R410A lines. Supplied in standard 5.8m lengths.

Tested: Eddy Current to ASTM E 243.
Alloy: UNS C12200 (Min 99.9% Cu).
Strength: Tensile Strength ≥ 290 Mpa.

📄 View Full Catalogue

Standards & Applications

Ref: AS 1571 / ASTM B88

Standard	Key Application	Available Sizes (OD)
AS 1571 (Australia)	ACR specific. High safety factor for refrigerants.	1/4" - 4 1/8"
ASTM B280 (Type L)	Industry benchmark for Air Conditioning.	3/8" - 4 1/8"
ASTM B88 (Types K, L, M)	Plumbing, Industrial Gas & Drainage.	1/4" - 6"

Note: Tubes designed to address high working pressures associated with new generation refrigerants.

BS EN 1057 Sanitary

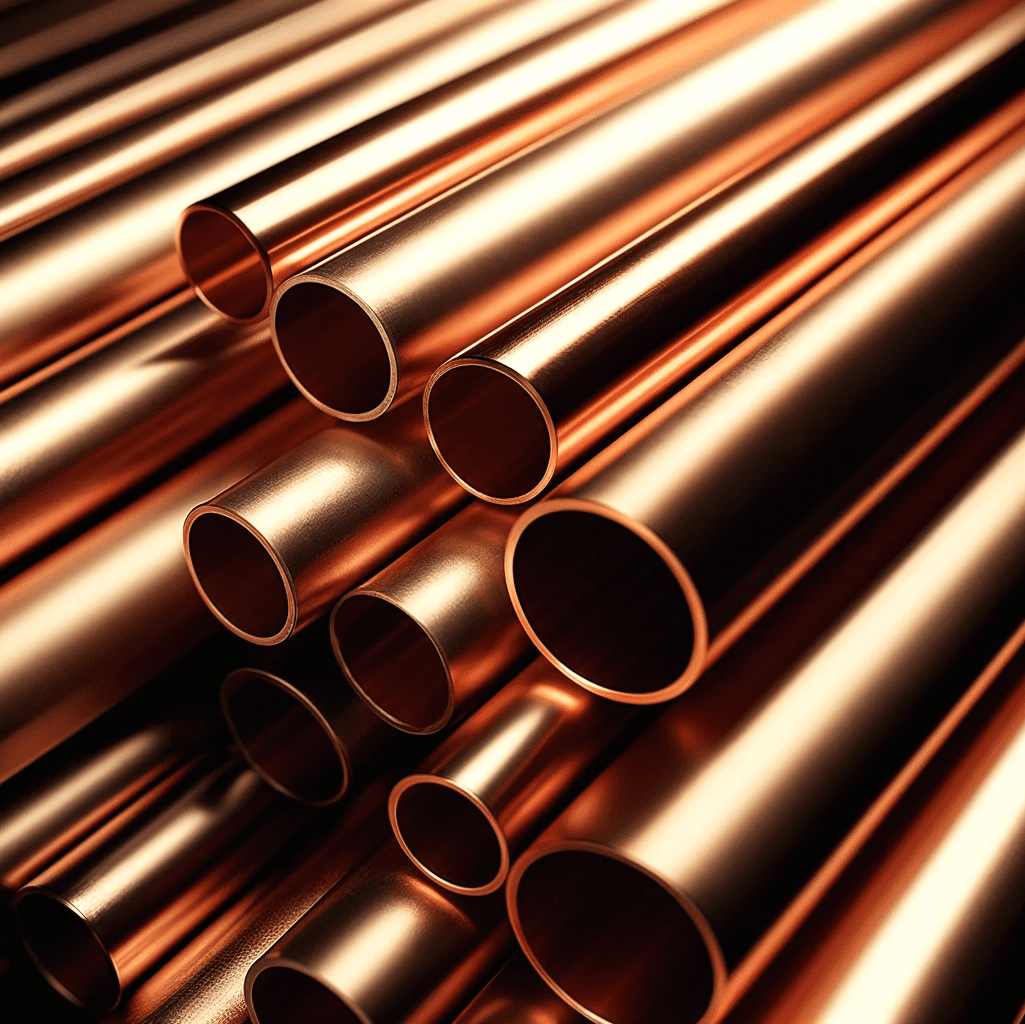

Sanitary Copper Tubes

Compliant with BS EN 1057 (formerly BS 2871). Suitable for hot/cold water, sanitation, and gas distribution.

Purity: Cu-DHP (Min 99.9% Copper).
Temper: Half Hard (R250) or Hard (R290).
Durability: High corrosion resistance.

📄 View Full Catalogue

Selection Guide (Table X vs Y)

Ref: BS EN 1057

Classification	Working Pressure (Ex: 15mm)	Primary Application
Table X (Standard Wall)	58 bar (Half Hard)	Above Ground Services Drinking water, heating, sanitation.
Table Y (Thick Wall)	87 bar (Half Hard)	Underground Works Heavy duty requirements, Gas reticulation.

Note: Table Y provides added toughness and durability for underground works.

Pair Coil JIS A9511

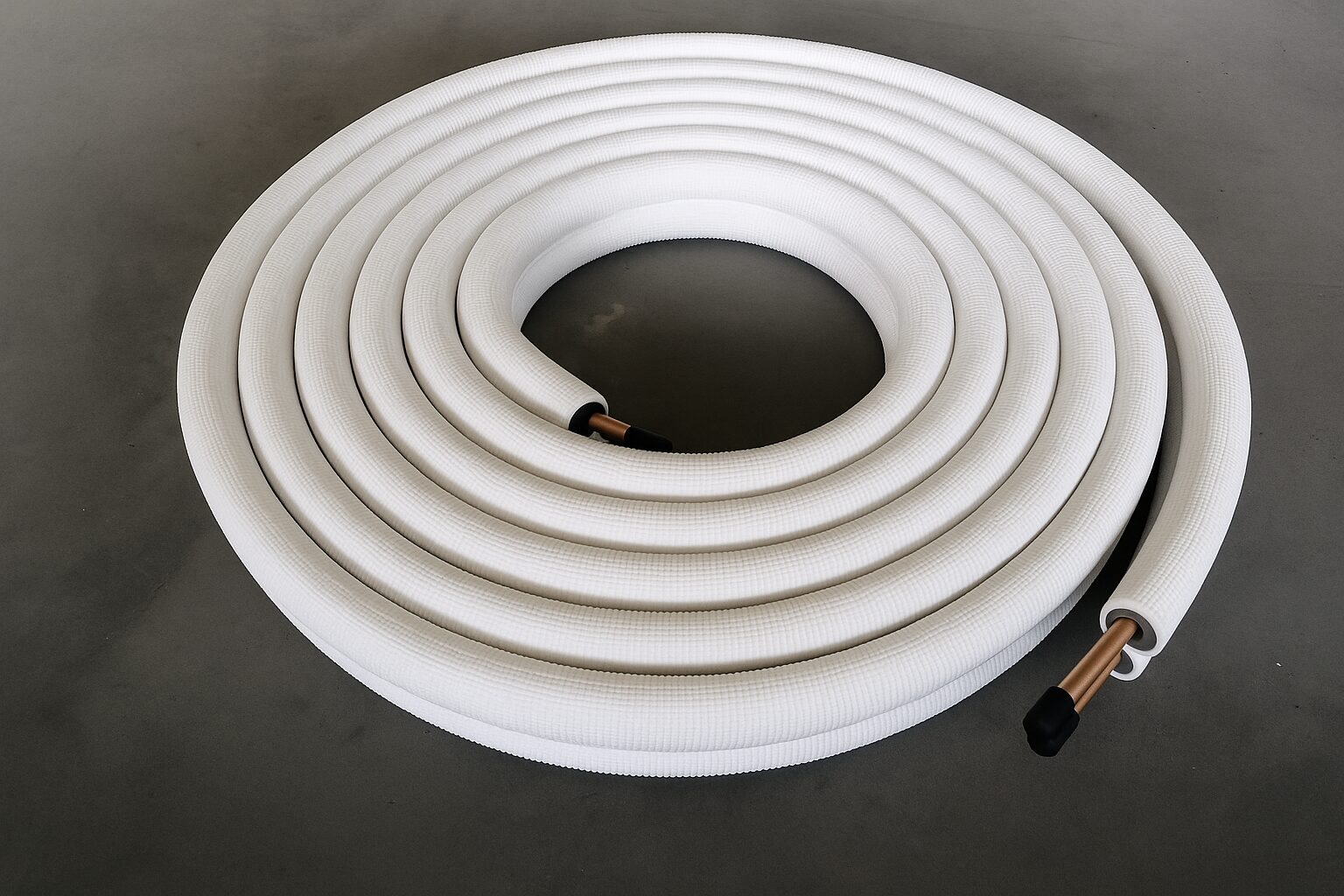

Insulated Pair Coil

Seamless copper tubes (ASTM B280) pre-insulated with embossed polyethylene film. Designed for quick split-unit installation.

Material: Phosphorous deoxidized copper.
Foam: PE Foam (JIS A9511 / ASTM E84).
Safety: High pressure rating for R410A/R32.

📄 View Full Catalogue

Stock Sizes (20m Length)

Ref: Page 10 Catalog

Product Code	Tube Combination (Inch)	Insulation Thk
PC 2361	1/4" + 3/8" (0.61mm Wall)	8mm / 8mm
PC 2461	1/4" + 1/2" (0.61mm Wall)	8mm / 10mm
PC 2582	1/4" (0.81mm) + 5/8" (1.02mm)	8mm / 10mm
PC 3682	3/8" (0.81mm) + 3/4" (1.20mm)	8mm / 10mm

Note: Standard length 20 Meters per coil. Embossed film resists tearing during installation.

Engineering Data

Operating Pressure Guide

Saturated vapor pressure reference for R410A, R22, and R404A at elevated ambient temperatures.

Refrigerant Gas	45°C (113°F)	50°C (122°F)	55°C (131°F)	60°C (140°F)	65°C (149°F)	70°C (158°F)
R410A HIGH PSI	378.3	427.0	479.7	536.8	599.0	666.9
R22 (PSI)	239.1	269.0	303.8	340.0	375.8	419.8
R404A (PSI)	285.2	322.5	362.9	406.7	448.5	477.3
R407C (PSI)	251.6	285.7	324.1	365.4	425.3	473.0

ℹ️ Note: Data extracted from Thermoline® Catalogue (Page 18). Pressures are for guidance only.

Project References

Trusted by Icons

Our piping systems are the silent backbone of Malaysia’s most critical infrastructure, commercial hubs, and national landmarks.

★ National Landmark

KLCC (Petronas Twin Towers)

Kuala Lumpur City Centre

★ Telecommunications

KL Tower (Menara KL)

Kuala Lumpur

★ Government

Perdana Putra

Prime Minister's Office, Putrajaya

★ Government

Parliament of Malaysia

Kuala Lumpur

Aviation Hub

KLIA International Airport

Sepang

National Healthcare

Institut Jantung Negara (IJN)

National Heart Institute

Diplomatic

Malaysia Embassy

Phnom Penh, Cambodia

Healthcare

General Hospital KL

Kuala Lumpur

Financial District

The Exchange TRX

Tun Razak Exchange

Commercial Tower

Mid Valley South Tower

Mid Valley City

Retail & Mixed Use

IOI City Mall

Putrajaya (Largest Mall in MY)

Retail & Mixed Use

Sunway Velocity Mall

Cheras, KL

High-Tech Industrial

Intel Technology

Penang / Kulim Plants

International Gov

PMO Complex (Brunei)

Brunei Darussalam

Hospitality

Sunway Putra Hotel

Kuala Lumpur

CATALOGUE ACCESS

This catalogue is password protected.
Please contact sales to obtain the code.

WhatsApp for Password

ALREADY HAVE IT?

Don't need the catalogue yet?

Frequently Asked Questions

Common questions about Thermoline® Copper Tubes.

What is the difference between ASTM B280 and BS EN 1057? +

ASTM B280 is the American standard for Air Conditioning & Refrigeration (ACR). These pipes are cleaned, dehydrated, and capped to handle high-pressure refrigerants like R410A.

BS EN 1057 (formerly BS 2871) is the British/European standard for Water & Gas (Sanitary). These are typically used for plumbing, hot water systems, and gas distribution.

Are Thermoline® pipes compatible with R410A and R32 gas? +

Yes. All our ASTM B280 (ACR) copper tubes are seamless and designed with a high working pressure to safely handle modern refrigerants like R410A, R32, and R22. Please refer to our "Operating Pressure Guide" table for specific limits based on temperature.

Do you have ready stock for bulk project orders? +

Yes. Our Balakong warehouse stocks over 500 sizes of pancake coils and straight pipes. For large project requirements (VRV/VRF systems), we can arrange immediate lorry delivery within Klang Valley and standard courier options for other states in Malaysia.

How do I download the full specification catalogue? +

You can download the PDF catalog in the "Downloads" section above. It contains detailed data on Safe Working Pressure (SWP), bursting pressure, and weight per meter for all sizes.
