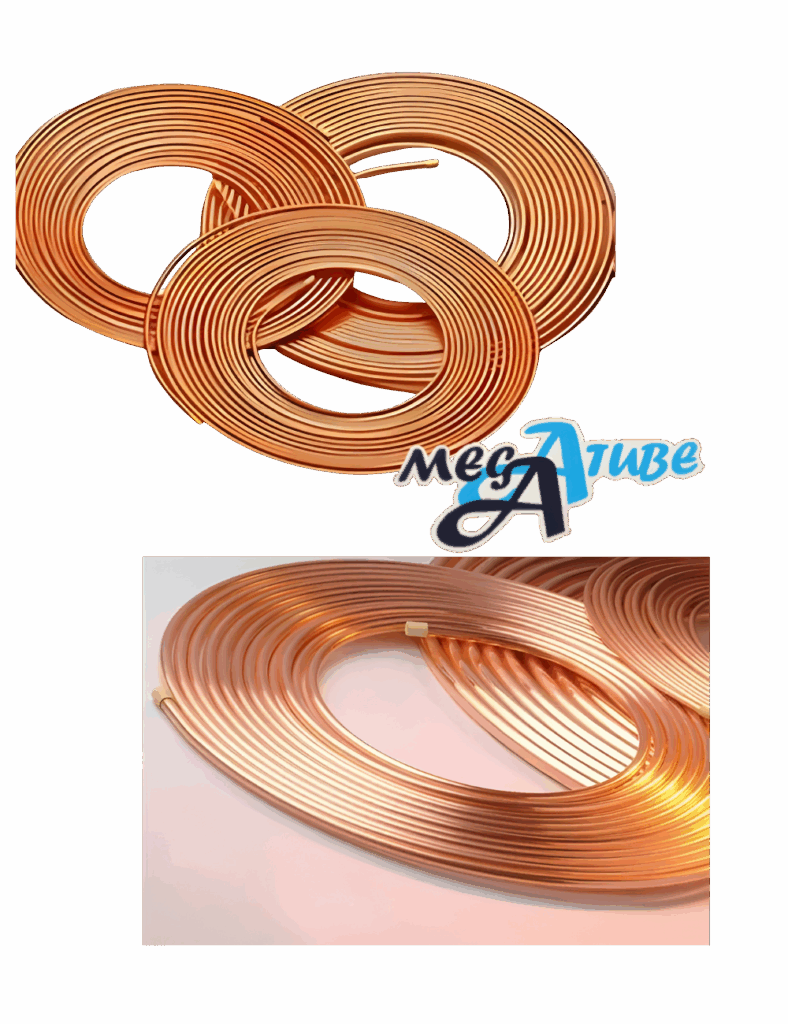

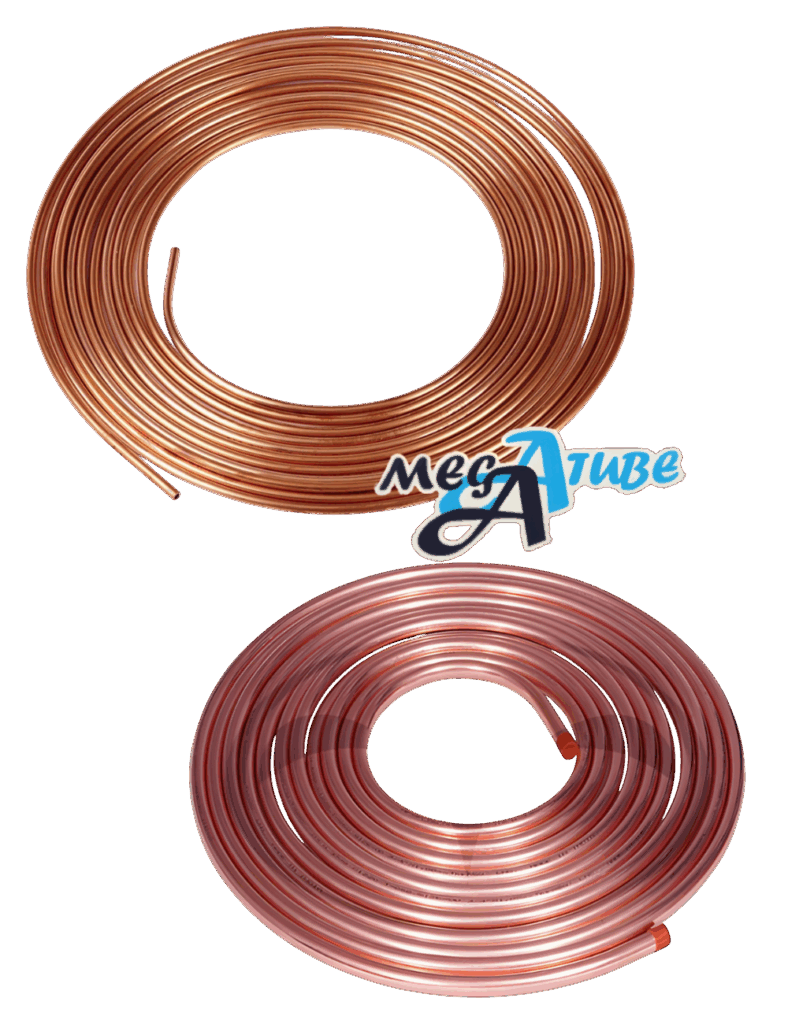

Refrigeration & Air Conditioning Tubes
Megaatube are supply a wide range of refrigeration and air conditioning tubes. These tubes are supplied in hard drawn straight length and annealed coils. Megaatube provide with a comprehensive range of copper tube products to comply with a variety of applications and International Standards.
Standard & Chemical Components
|
Standard
|
Alloy No.
|
Compostion
|
|
|---|---|---|---|
|
|
|
Cu + Ag (%)
|
P (%)
|
|
ASTM B280
|
C12200
|
Over 99.9
|
0.015 ~ 0.040
|
|
JIS H3300
|
C1220
|
Over 99.9
|
0.015 ~ 0.040
|
Cleanliness Requirement
All tubes are cleaned and sample tested to meet the residual requirements as specified by the codes at 0.038g/m2(0.035g/ft2).
Thickness Tolerances
The standard thickness at any point tolerance for tube either coiled or in straight length is ±10% of the specified thickness.
Temper
Product under this specification shall be furnished in either O60 (soft annealed), as specified in the contract or purchase order and defined in Practice B 601. Coils are normally furnished in O60 temper.
Restricted Access
This catalogue is password protected.
Please contact our sales team to obtain the access code.
